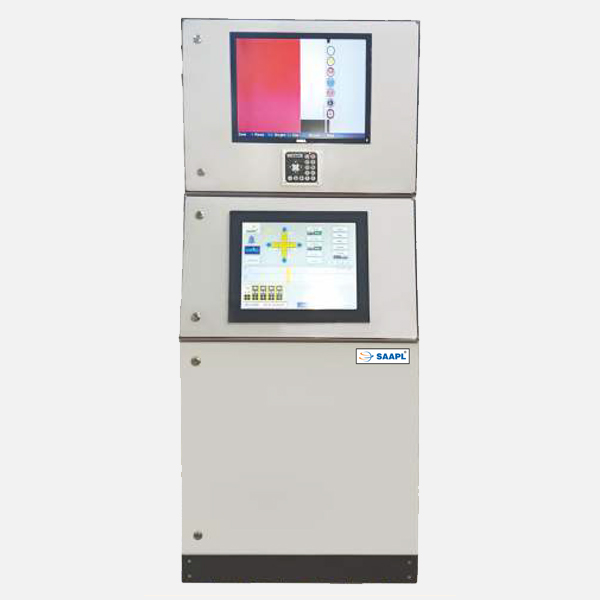

Automatic Register Control System

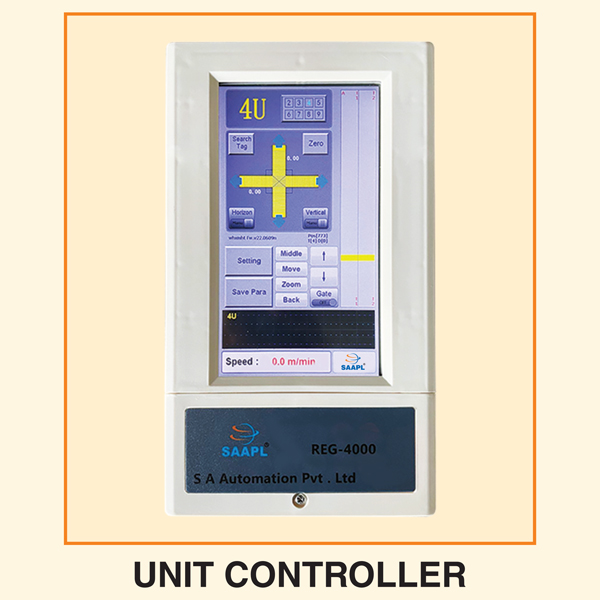

REG 4000

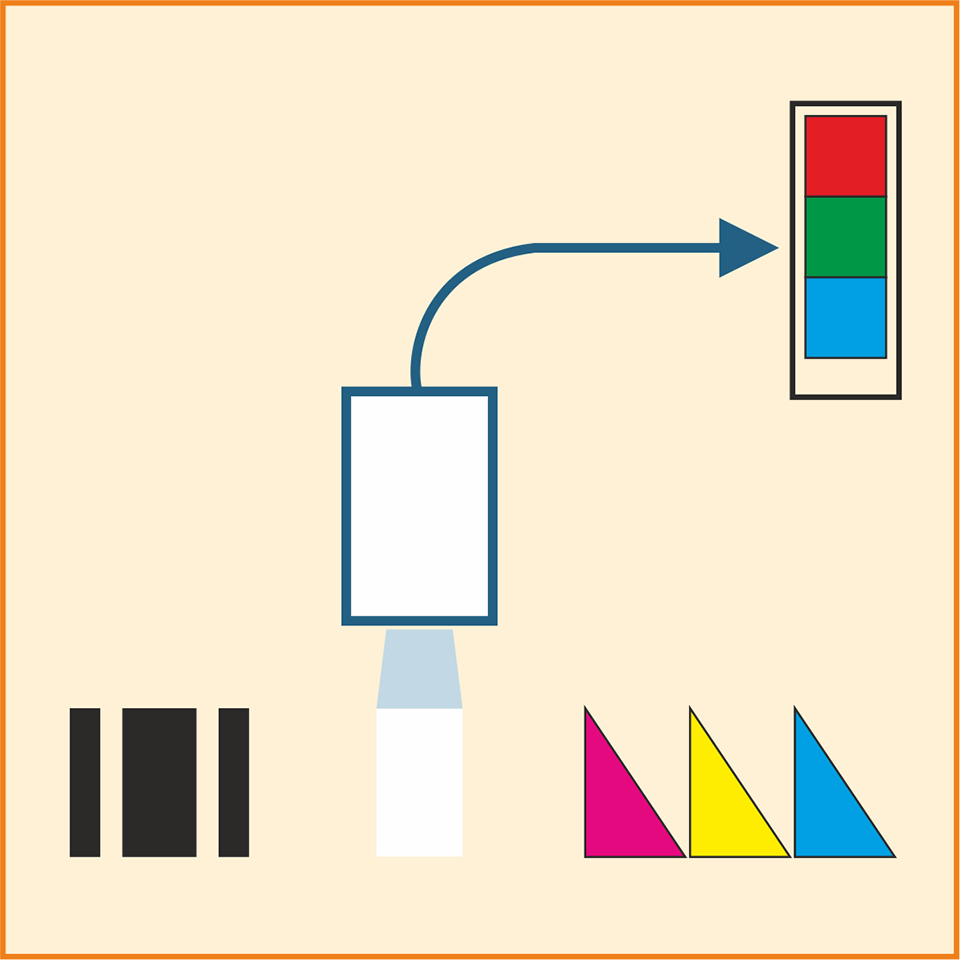

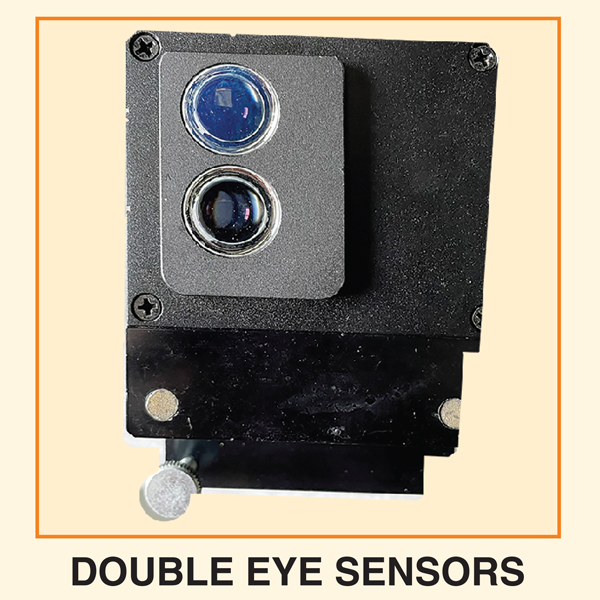

SAAPL’s latest series of REG 4000 for rotogravure printing machines provides optimum efficient register correction at either speed with use of latest double eye photoelectric sensor, highly efficient embedded PC, touch monitor and Individual unit motor control.
Pictorial symbol with suitable guidelines ensures easiness in quick set up with optimum correction in just a “ONE TOUCH”.
| Model | REG 4000 |
| Speed Control | Up to Max400M/min |
| Accuracy | ± 0.01mm |
| Amendment Speed | 1mm/s |
| Repeat | 350~1200mm |
| Unit | Up to 16 color |
| Area | Vertical and Horizontal Error |
| Power | 800 W |
| Voltage | AC 230V±10% 50～60Hz |
- Presetting Function(Optional)
- Machine integration for motor or drive(Optional)
- Rotogravure printing machine
- Flexographic printing machine
- Off-line register machine

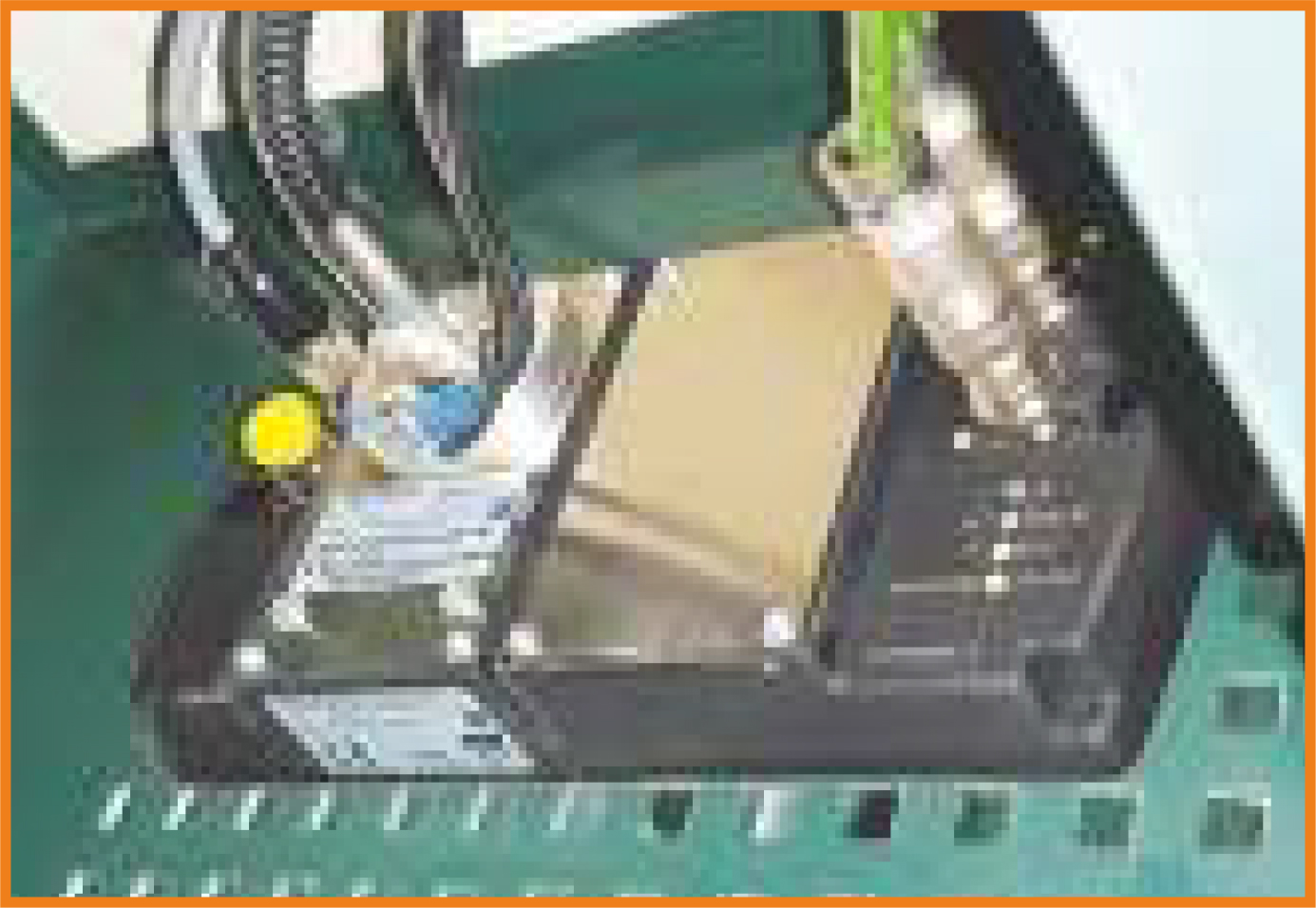

Integrated Register Control System
Applications
- Els rotogravure printing machine
- Register coating machine
- Els flexo printing machine
Available Version

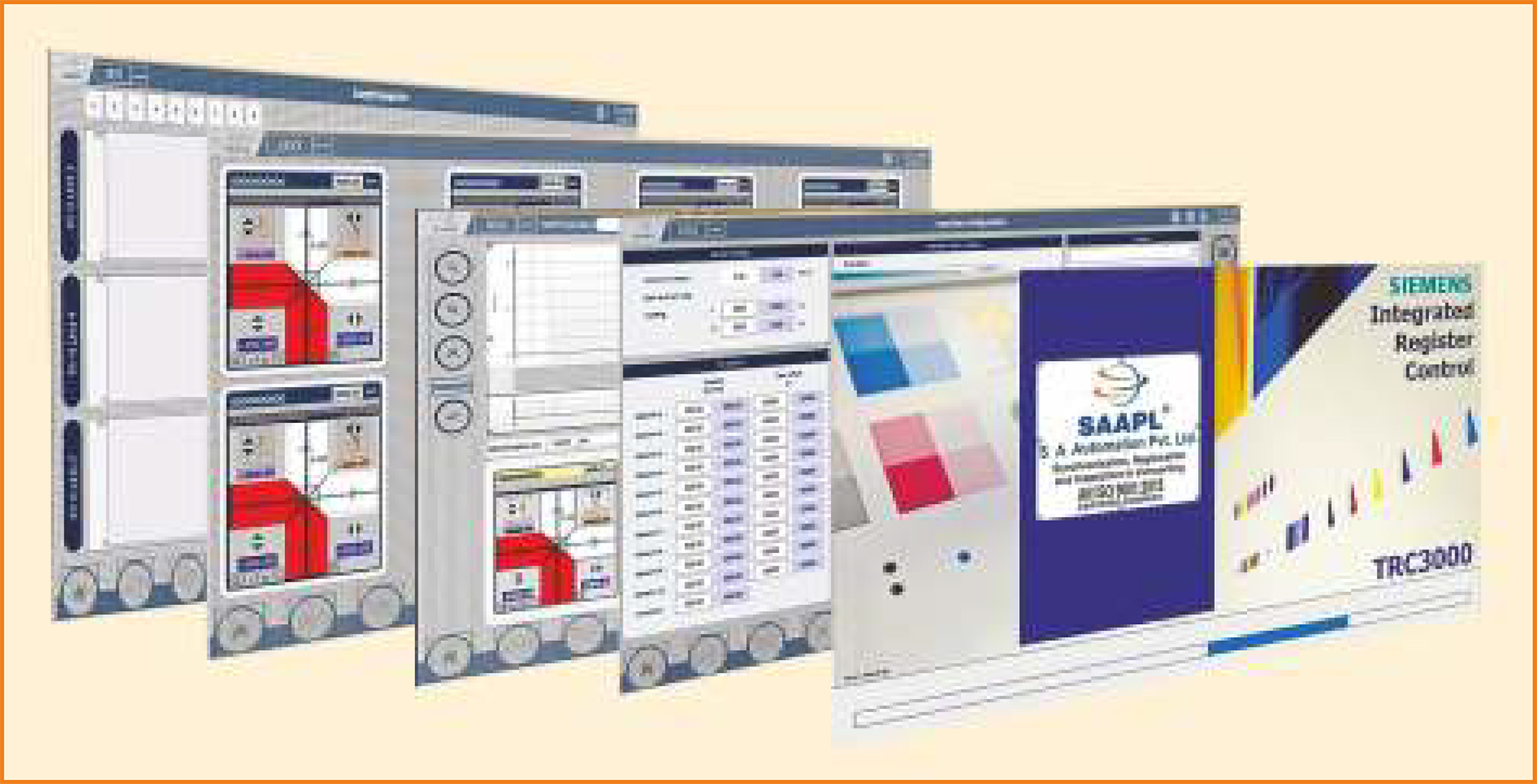

- TRC 3000
- TRC 7000
Features
- Integrated with Simotion to avoid communication delay. It works on IRT communication.
- No Noise issue in communication cable.

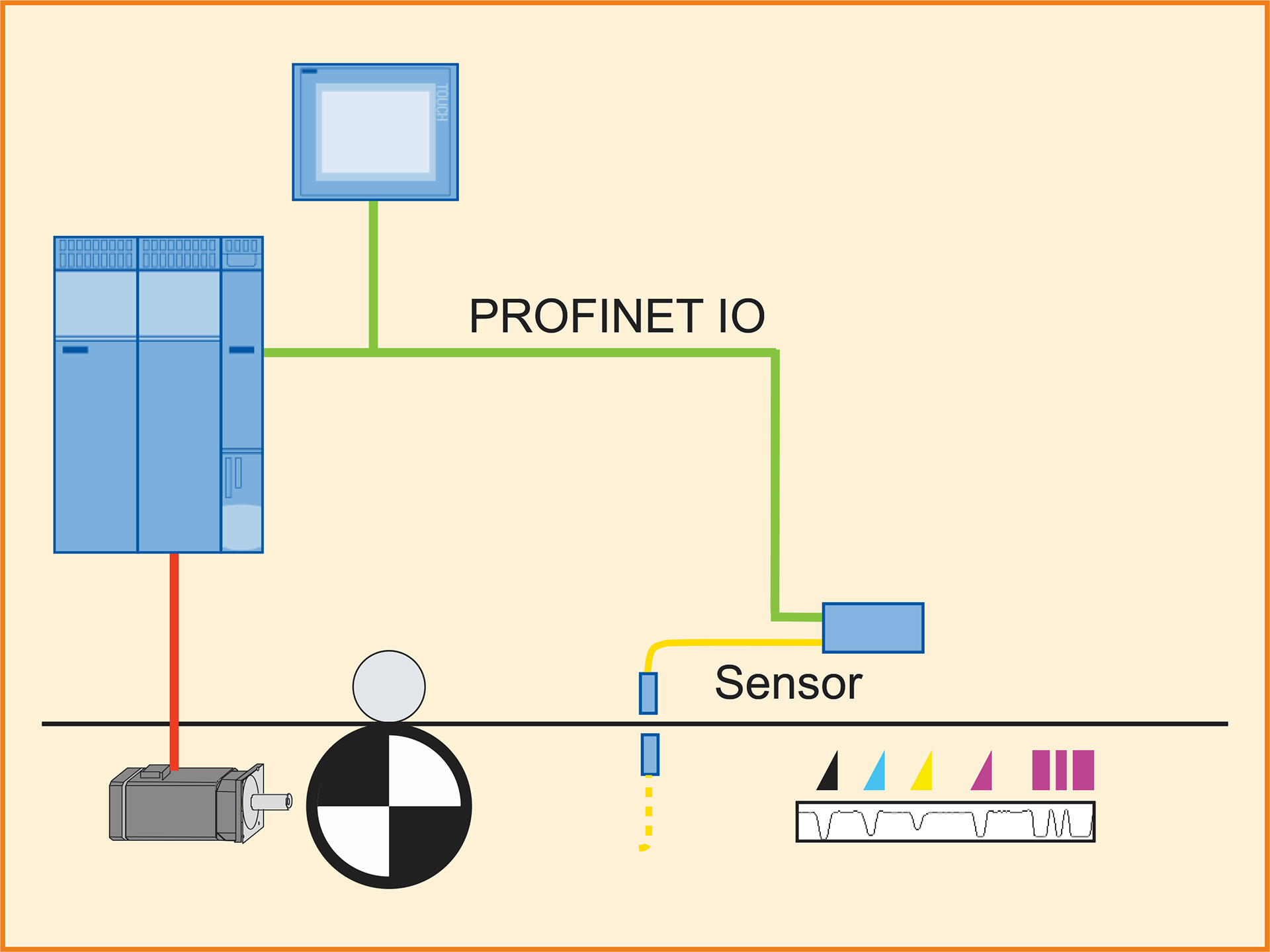

- Communicate via profinet communication which is faster than profibus communication.
- Min error detection is 10 micron.
- Automatic register mode will change from manual to auto within 5 sec. with minimum wastage.
- Fast correction in splice and ramp up/down period.
- Individual station register control parameters (gain, revolution, time etc.).
- Pre-register integration with Simotion.
